TAF

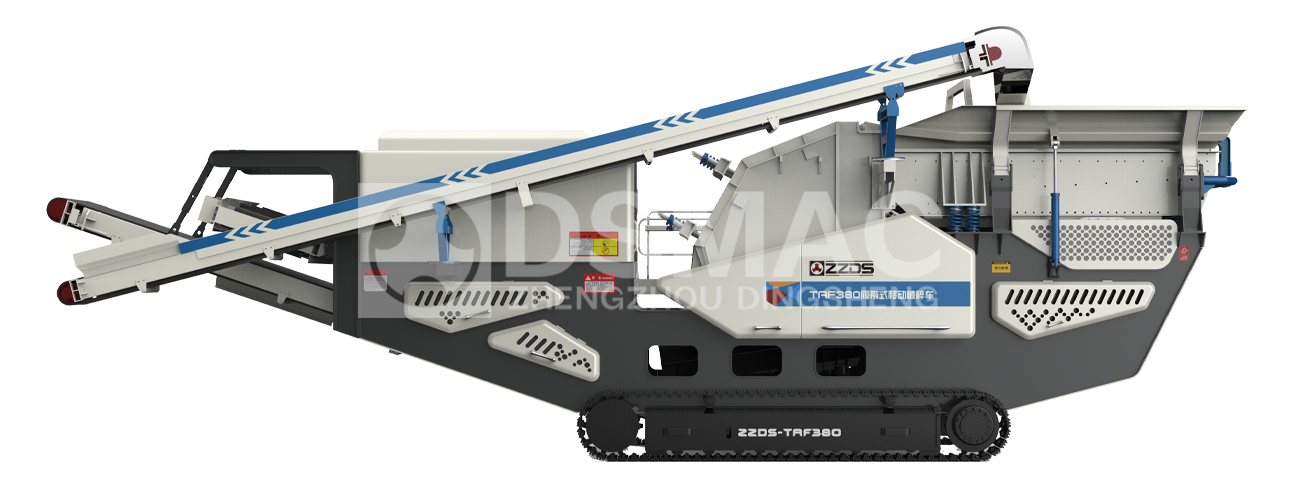

TRACKED IMPACT CRUSHER

TRACKED IMPACT CRUSHER
CAPACITY
100-400t/h
Max. feed size
600mm
Dual-power package
Overall Properties
Raw materials: granite, basalt, limestone, shale, river pebbles, cement clinker, quartz, phosphate rock, bauxite, steel slag, etc.
Applications: primary and secondary crushing applications in mining, aggregates, mineral processing, and recycling construction and demolition waste


The TAF series tracked impact crusher is for profitable recycling of asphalt, concrete and demolition rubble as well as natural stone.
The tracked impact crusher is our latest equipment and it can ensures the best final grain quality and has already been successfully introduced into the market.

Feature
1. Compact and sturdy chassis enhances the stability of the production
2. Standard advanced intelligence system
3. Boosted capacity thanks to our Austrian technology AF series impact crushing unit
4. Dual-power package
5. Independent pre-screening unit

Model Max. feed size
(mm)
Capacity
(t/h)
Installed power
(kw)
Running power
(kw)
Working dimension
(mm)
Delivering dimension
(mm)
TAF270 ≤400 100-200 237.4 75 14550 x 5950 x 4550 12600 x 3300 x 3100
TAF340 ≤500 150-250 287.4 75
TAF380 ≤600 200-300 330.9 90 14550 x 3300 x 3200
TAF430 ≤600 300-400 365.1 110
