WAS

MOBILE SCREEN

CAPACITY
200-400 t/h

Max. feed size
70mm

Adjustable angle

Overall Properties Technical Specifications PHOTO/VIDEOS CONTACT US

Overall Properties

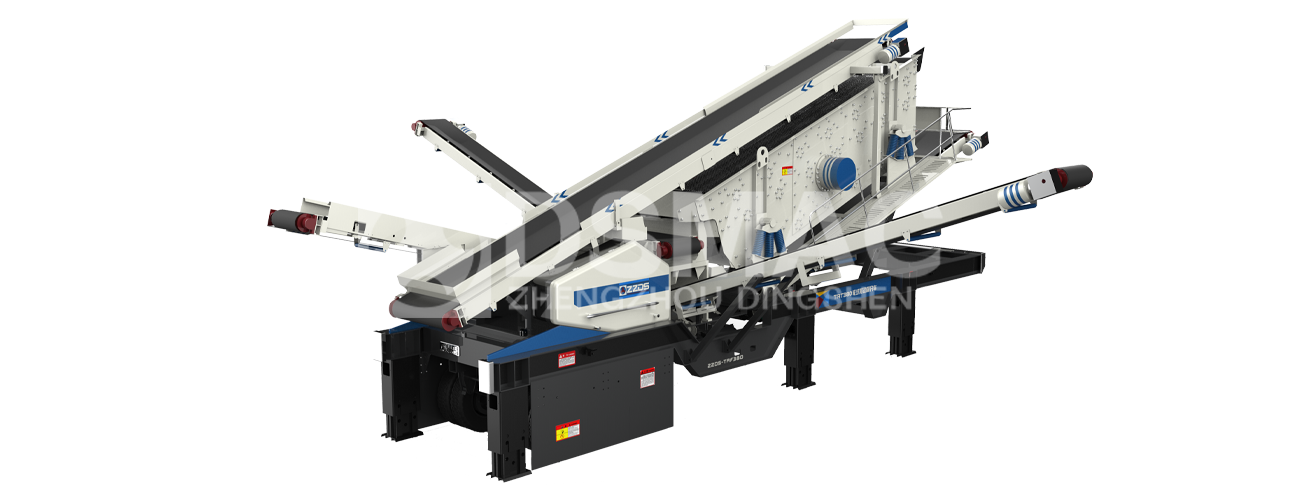

The WAS series mobile screen features the triple shaft, oval stroke, horizontal screens which are well known for their performance and longevity. Our portable screen is designed to get the most out of these high performance screens and make it easy to transport the plants from site to site.

Feature
1. High capacity two-bearing screen
2. Adjustable screening angle
3. Hydraulic-folded and supported discharge conveyors
4. Easy access to all service point
5. Dual-power package

Model	Max. feed size (mm)	Capacity (t/h)	Installed power (kw)	Generator set (kw)	Working dimension (mm)	Delivering dimension (mm)
WAS270	≤70	200	44.7	Shared with crushing station	18300 x 10800 x 5700	16300 x 2820 x 4200
WAS340	≤70	250	52.2		18300 x 10800 x 5700	16300 x 3020 x 4200
WAS380	≤70	300	77.5		18300 x 12800 x 5900	16300 x 3220 x 4200
WAS430	≤70	400	77.5		18300 x 12800 x 5900	16300 x 3220 x 4200
