TAS

TRACKED SCREEN

CAPACITY
200-400 t/h

Max. feed size
70mm

Adjustable angle

Overall Properties Technical Specifications PHOTO/VIDEOS CONTACT US

Overall Properties

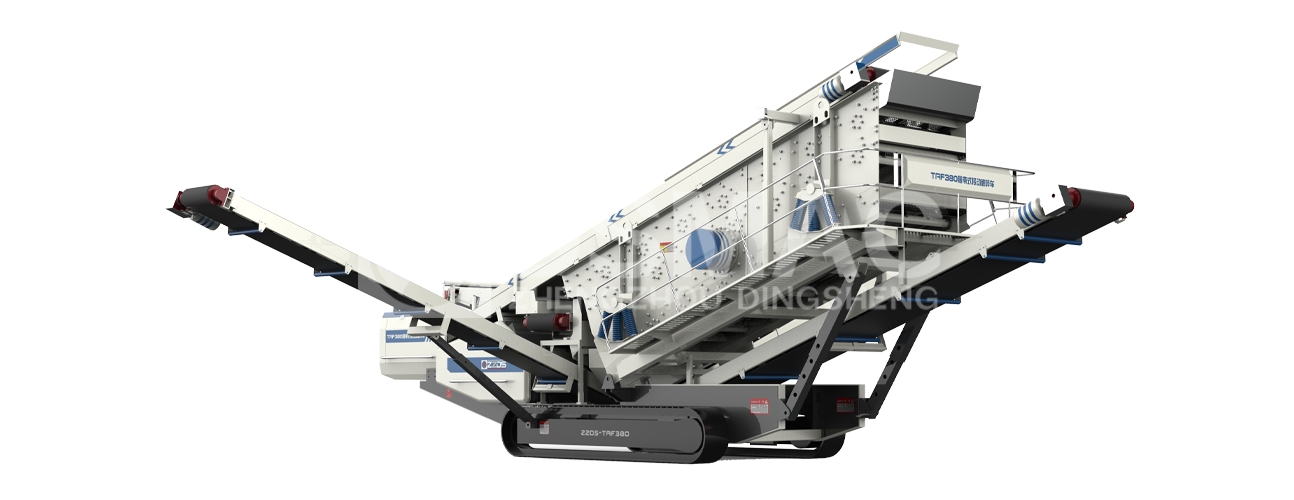

The TAS series tracked screen features the triple shaft, oval stroke, horizontal screens which are well known for their performance and longevity. Our portable screen is designed to get the most out of these high performance screens and make it easy to transport the plants from site to site.

Feature
1. High capacity two-bearing screen
2. Adjustable screening angle
3. Hydraulic-folded and supported discharge conveyors
4. Easy access to all service point
5. Dual-power package

Model	Max. feed size (mm)	Capacity (t/h)	Installed power (kw)	Running power (kw)	Working dimension (mm)	Delivering dimension (mm)
TAS270	≤70	200	44.7	75	18300 x 10800 x 5700	16300 x 2820 x 4200
TAS340	≤70	250	52.2	75	18300 x 10800 x 5700	16300 x 3020 x 4200
TAS380	≤70	300	77.5	75	18300 x 12800 x 5900	16300 x 3220 x 4200
TAS430	≤70	400	77.5	90	18300 x 12800 x 5900	16300 x 3220 x 4200

You can reach us by filling in the form below, any requests, suggestions and criticisms. You may be confident that we will respond to your requests as soon as possible.
