MJ

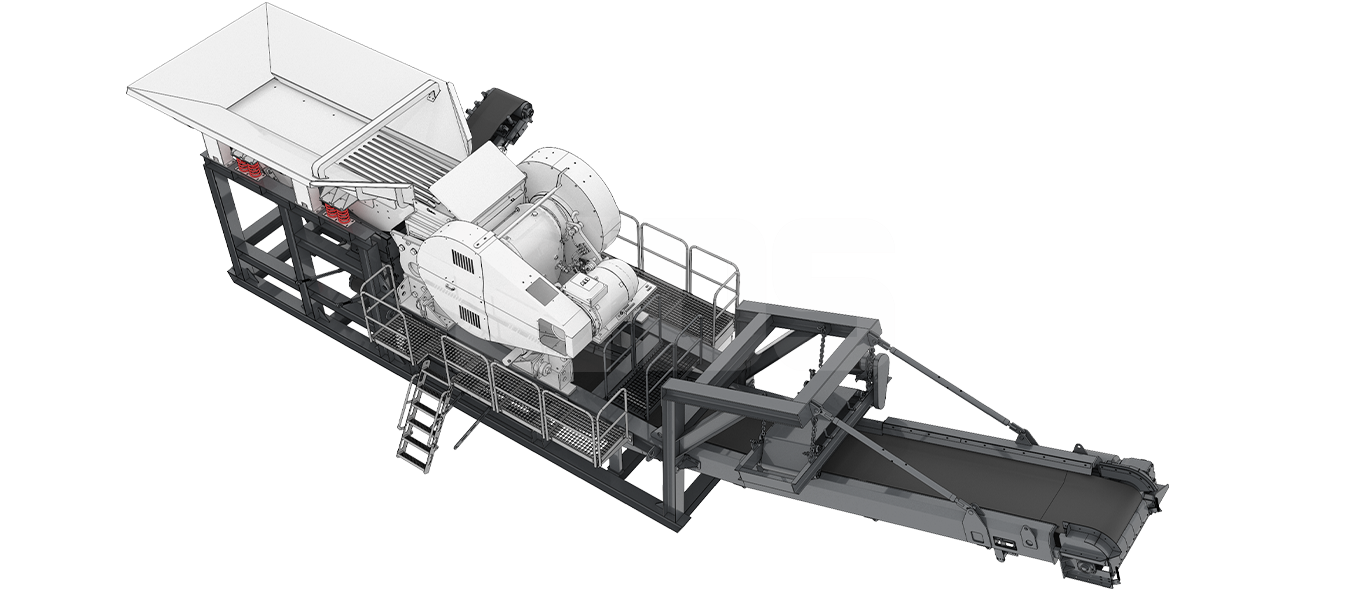

MODULAR JAW PLANT

MODULAR JAW PLANT
Capacity
100-400tph
Max. feed size
800mm
Compact Structure
Overall Properties
Modular equipment is structurally compact, easy to transport, can be installed and moved as a whole and no need for civil engineering.

According to the customer’s needs and the functional requirements, different functions can be flexibly configured, and each module can work independently or in conjunction with each other to form a system.

Compared with traditional stationary production line, modular equipment reduces land occupation, reduces civil construction costs, has less on-site installation workload, short installation period, and can be put into production quickly.


Model MJ90 MJ116 MJ120 MJ120B
Capacity (T/H) ≤200 ≤300 ≤400 ≤400
Feed size (MM) ≤460 ≤600 ≤700 ≤700
Unit weight (T) 28 39 54 60
Jaw Crusher JC900 JC1150 JC1200 JC1200
Inlet opening (w*d)(mm) 930 x 580 1,150 x 760 1200x870 1,200 x 870
C.S.S. range (mm) 60 - 175 70 - 200 70 - 175 70 - 175
Power rating (kw) 90 132 160 160
