XL

SPIRAL SAND WASHER

Cleaning and separating the powder dust and soil from various kinds of sea sand, river sand, machine-made sand and other gravel aggregate

The design of helical blade plays a role in separation of powder and soil in the sand stone.

Reliable transmission device ensures the cleaning effect.

Greater capacity, smaller power consumption, easy maintenance and high efficiency.

Less investment and high benefit.

Capacity
40-350t/h

Max feeding size
10 mm

Cleaning and separating

Overall Properties Technical Specifications PHOTO/VIDEOS CONTACT US

Overall Properties

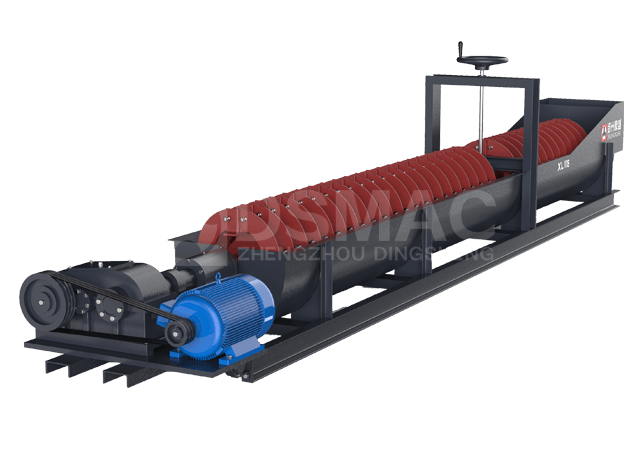

The XL series spiral sand washer can be used for cleaning and separating the powder dust and soil from construction sand. Novel seal structure and reliable transmission of this sand washing device ensure the cleaning effect.

The XL series spiral sand washer is usually used with a sand making equipment together, and there are two sorts of single spiral type and double spiral type, with features of a high degree of washing, reasonable structure, large capacity, low power consumption, and less loss of sand available.

Model	Screw diameter (mm)	Speed (rpm)	Max. feed size (mm)	Capacity (t/h)	Power (kw)	Dimension (mm)	Weight (t)
XL680	650	32	＜10	40-50	7.5	8000x2050x1400	3.8
XL762	762	26		50-75	11	8545x2650x3862	5.23
XL915	915	21		75-100	11	8500x2810x3600	6.27
2XL915	915	21		120-200	2x11	8420x3765x3960	11.11
XL1115	1115	17		100-175	15	10970x3945x4720	10.18
2XL1115	1115	17		200-350	2x15	10970x5250x4720	17.94
