SINGLE STAGE HAMMER CRUSHER

DPC
SINGLE STAGE HAMMER CRUSHER

Processing abrasive and moderately sticky raw materials in one stage. mainly suitable for crushing various ores the compressive strength of which is no more than 150MPa.
1.
High Performance - Low Operating Costs
2.
Hydraulic opening of crusher housing
3.
Hydraulic tool for changing the hammers
4.
Controlling the Final Product
Capacity
80-2000t/h
Max feeding size
1500mm
Single stage crushing

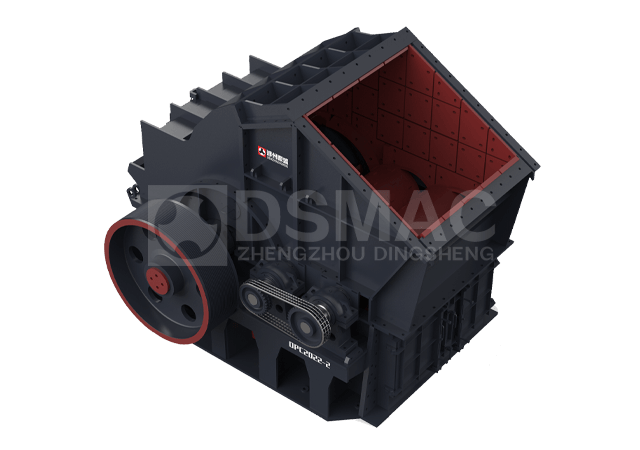

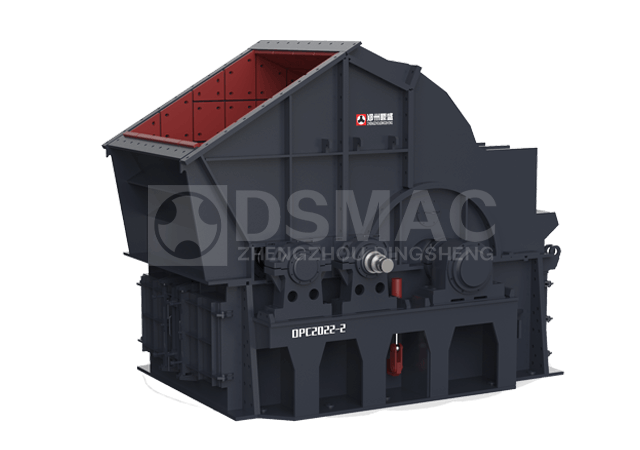

Overall Properties
The DPC single stage hammer crusher is a cost-effective solution for quarry processing. The capacity of upgraded model has been increased by 5-10% and up to 2500 tph with longer service life of wear resistant parts. The AMC alloy hammerhead (Big Gold Teeth®) service can be increased by 50~150%.

Another feature is the hydraulic opening of the crusher cavity which reduces downtime and makes servicing of the crusher safer. Installing two hydraulic cylinders, appertaining brackets and a set of hinges enable the crusher to be opened within 5 - 10 minutes.

A hollow hydraulic cylinder placed in a rigid frame is provided to handle the hammer bolts when turning or changing hammers. Mobile hydraulic power unit supplies the hydraulic pressure to operate the cylinder.

The outlet grate is equipped with sturdy and replaceable grate bars supported by heavy cheeks. The position of the outlet grate assembly can be adjusted to control the final product. This takes place hydraulically from outside the crusher casing.
Model Rotor size
(mm)
Capacity
(t/h)
Hammer quantity Inlet size
(mm)
Max. feed size
(mm)
Product size
(mm)
Power
(kw)
Weight
(no motor)
(t)
DPC1412 Φ1420X1194 80-150 28 1290X1320 500X500X900 ≤25 200 20.5
DPC1616 Φ1650X1630 150-220 32 1500X1785 800X800X1200 ≤25 315 42
DPC1818 Φ1850X1800 300-400 40 1755X1780 1000X1000X1000 ≤25 560 67
DPC2018 Φ2018X1802 350-500 40 2040X1860 1000X1000X1000 ≤25 710 79
DPC2022 Φ2018X2227 400-600 50 2228X2460 1000X1000X1200 ≤25 800 110
DLPC2022-1 Φ2018X2227 600-800 50 2228X2460 1000X1000X1500 ≤25 800 120
DLPC2022-2 Φ2018X2227 700-900 50 2228X2460 1000X1000X1500 ≤25 800 130
DPC2325-1 Φ2300X2500 800-1000 66 2330X2690 1100X1200X1500 ≤75 1120 130
2DPC1818 Φ1850X1800 800-1000 40X2 2030X2080 1000X1000X1200 ≤75 560X2 120
2DPC2022 Φ2018X2237 1200-1500 50X2 2670X2460 1000X1200X1500 ≤75 800X2 145
2DPC2325 Φ2300X2508 1600-2000 66X2 3065X2666 1100X1200X1500 ≤75 1120X2 180
