XHP

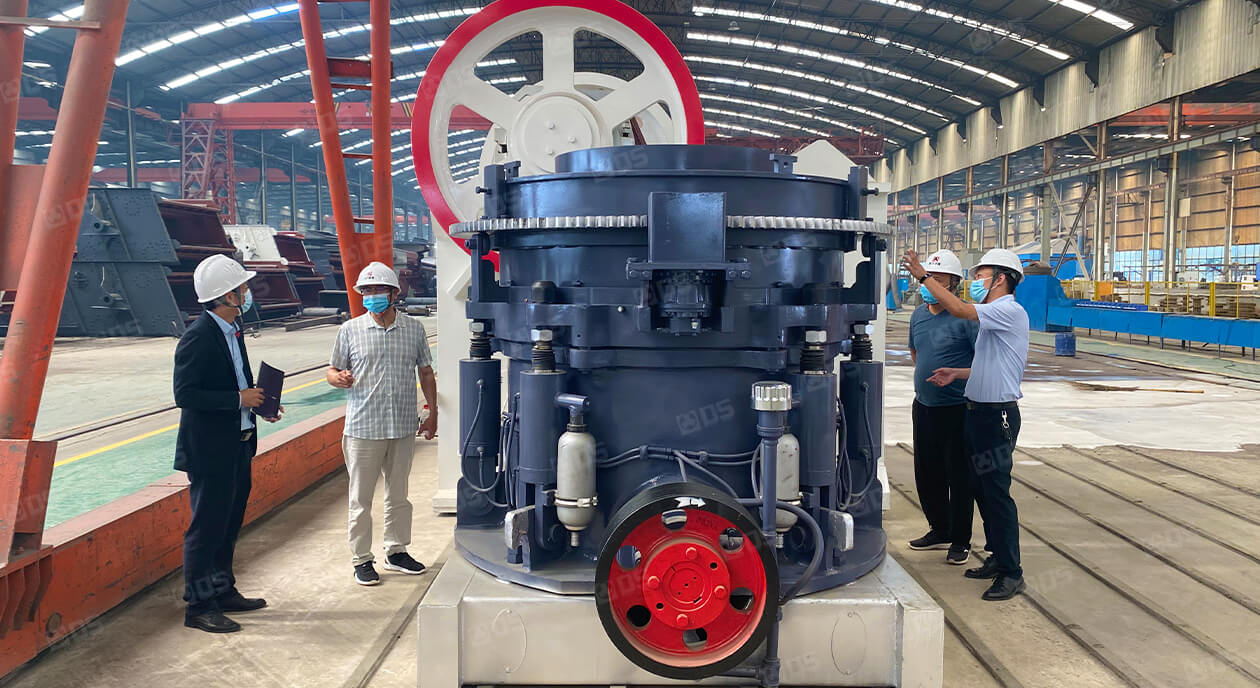

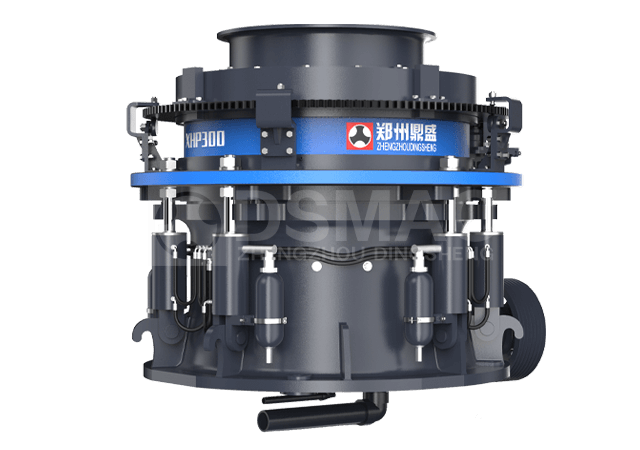

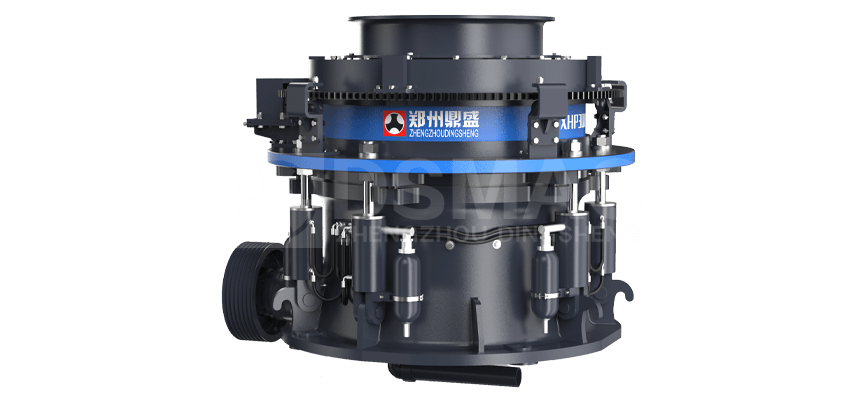

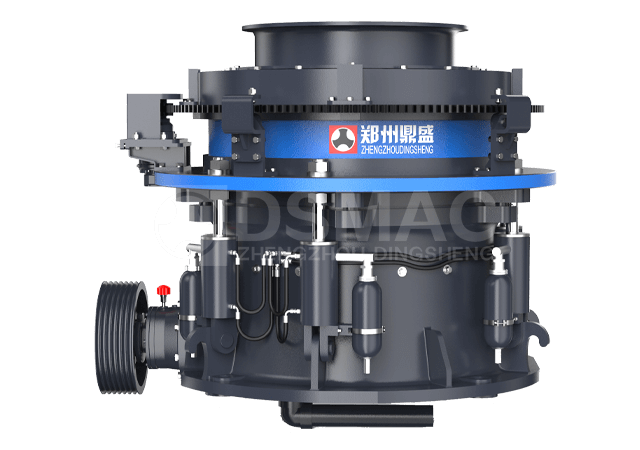

HYDRAULIC CONE CRUSHER

Raw material: Iron ore, copper, steel slag, slag, river stone, granite, basalt, quartz stone, diabase

Fixed main shaft, equal spherical shafts, 5 to 15% higher efficiency

Optimized crushing speed, throw and chamber design provide higher capacity, uniform size fractions and cubical end-product shape

Fully automatic robust design, overload release protection

Metal ceramic spares, Starry SkyTM, concave and mantle, 50-80% more spares service life

Capacity
90-1200 t/h

Max feeding size
350mm

Secondary or tertiary fine crushing

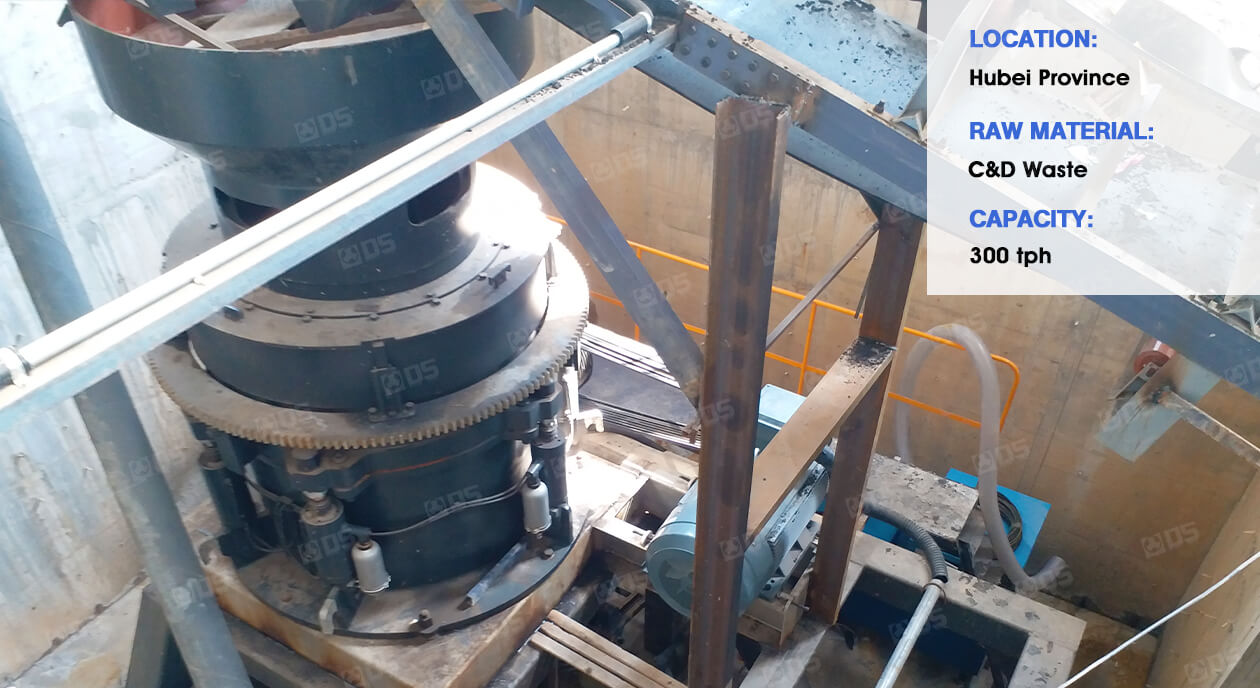

Overall Properties Technical Specifications PHOTO/VIDEOS CONTACT US

Overall Properties

Dingsheng® XHP series hydraulic cone crushers offer a polished design that outperforms most any traditional cone crushers. It has a great crushing performance in the work of medium-size crushing, fine crushing and super fine crushing. This cone crusher is of higher productivity and better ease of maintenance.

Our experience in the past helped us understand what is essential to improve on the plant assuring our customer is running with lowest operating cost and minimum downtime and high productivity.

Model	Cavity type	Standard		Short head		Power (kw)	Capacity (t/h)
Model	Cavity type	Inlet size (mm)	Min. outlet Size (mm)	Inlet size (mm)	Min. outlet Size (mm)	Power (kw)	Capacity (t/h)
XHP200	Coarse	185	19	76	10	132-200	90-250
	Medium	125	17	54	6
	Fine	95	13	23	6
	Extra fine			10	5
XHP300	Extra coarse	230	25			182-250	115-440
	Coarse	210	20	75	10
	Medium	150	15	50	8
	Fine	105	10	20	6
	Extra fine			20	6
XHP400	Extra coarse	295	30			280-355	140-630
	Coarse	250	25	90	10
	Medium	195	20	50	8
	Fine	110	14	40	6
	Extra fine			30	6
XHP500	Extra coarse	330	30			355-450	175-790
	Coarse	285	25	90	13
	Medium	200	20	55	10
	Fine	133	16	40	8
	Extra fine			35	6
XHP800	Extra coarse	353	32			550-630	260-1200
	Coarse	297	32	155	13
	Medium	267	25	92	10
	Fine	219	16	33	6
