ZPC

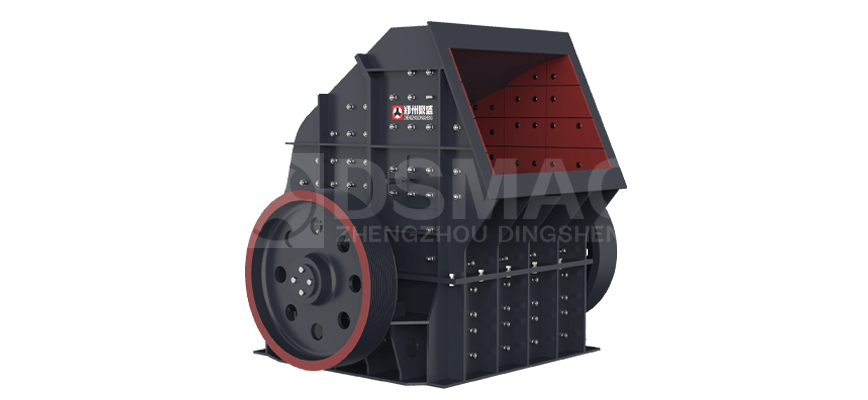

HAMMER CRUSHER

Raw material: stone & ore with compressive strength ≤200MPa and Calcium content ≥40%

Once molding crushing technology and easy maintenance greatly reduce production cost

Dust pollution controlling system is environment friendly

The design without grate plate reduces the wear of the hammer and prolong the service life 4-6 times

Capacity
80-2500 t/h

Max feeding size
1500mm

Large crushing ratio

Overall Properties Technical Specifications PHOTO/VIDEOS CONTACT US

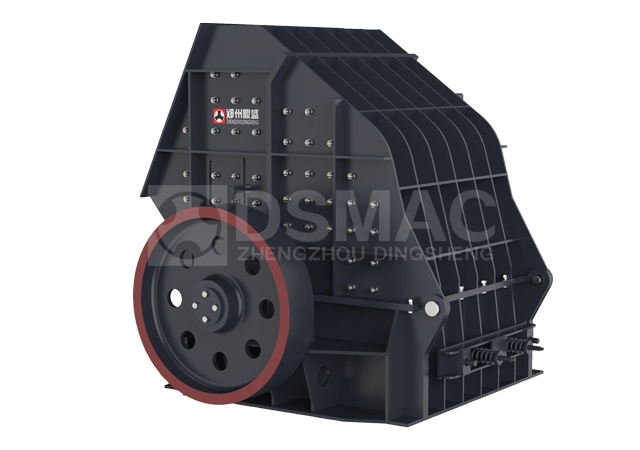

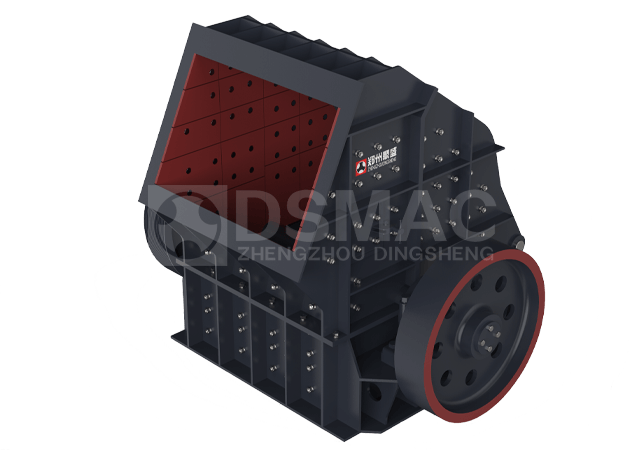

Overall Properties

The ZPC series hammer crusher combines the characteristic of traditional single-stage hammer crusher and impact crusher, achieving multi-usage. It can be used not only for the first stage crushing, but also the second stage crushing (back) to achieve once molding (single stage crushing), reducing the investment cost by 30 to 40% at the same time.

The single hammer of ZPC series hammer crusher is of large weight. The motor drives the rotor to rotate at high speed in the crushing cavity. Even the large block with 700-1200mm can be broken into small pieces and particles in short time, which makes the effects of crushing large stone into small ones achieved easily. The ZPC series hammer crusher can be equipped with double motors, making it convenient to switch between the low voltage motor and the high voltage one according to requirement.

Model	Capacity (t/h)	Max. feed size (mm)	Product size (mm)	Power (kw)	Rotor size (mm)	Hammer quantity	Weight (t)
ZPC1214	80-150	≤400	≤50	160	φ1220×1450	20	17
ZPC1315	100-200	≤500		220	φ1320×1550	24	23
ZPC1416	250-400	≤600		320-400	φ1420×1750	14	24.8
ZPC1620	500-800	≤800		630	φ1650×2000	30	48.5
ZPC1820	700-1000	≤900		800	φ1820×2000	30	59
ZPC2022	900-1400	≤1000	≤70	900-1120	φ2020×2550	36	98
ZPC2325	1400-2000	≤1000		1420-1800	φ2300×2800	40	122
ZPC2528	2000-2500	≤1500		1400	φ2500×2800	48	155.5
