SOFT ROCK SAND MAKING MACHINE

Secondary or tertiary crushing stage in the process for desulfurization and denitrification; making dry mortar sand for soft rocks such as limestone, dolomite, clinker, calcium carbide, sandstone, coal gangue, gypsum, blast furnace slag, etc.

Best suitable unit for dry mortar sand manufacturing

Easy to operate and maintain

Low cost per ton

Low dust emission

Capacity
12-150t/h

Max feeding size
40mm

Secondary or tertiary crushing

Overall Properties Technical Specifications PHOTO/VIDEOS CONTACT US

Overall Properties

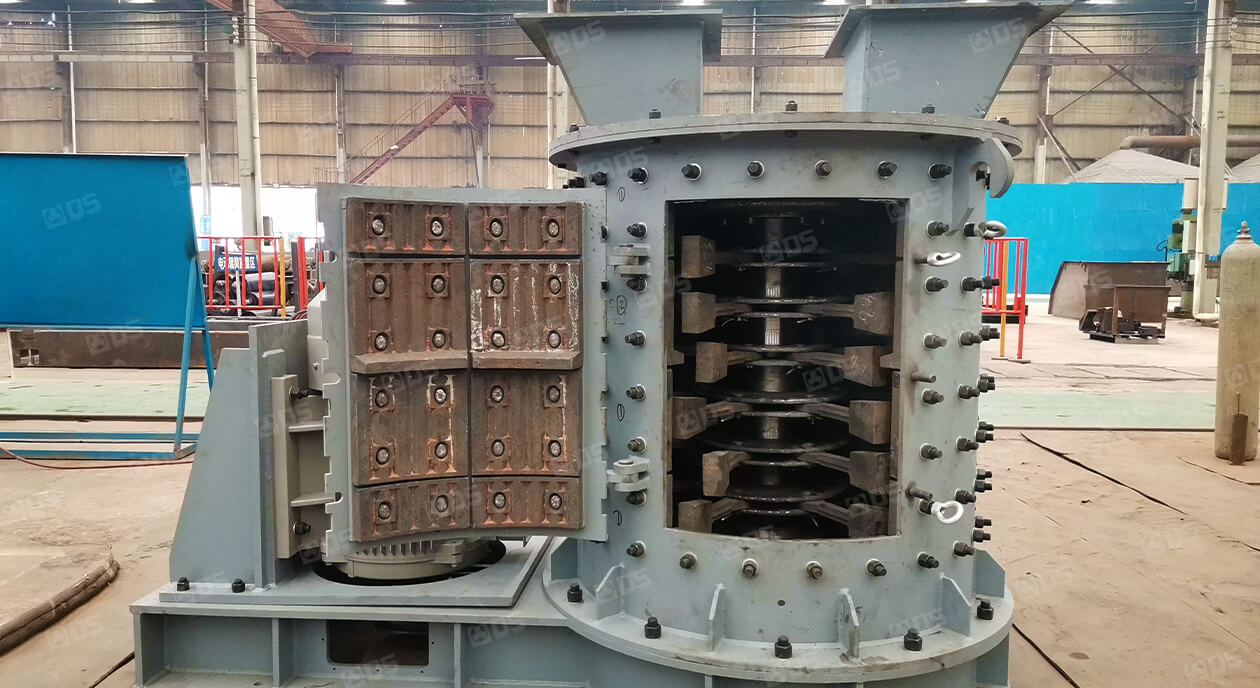

The YM series soft rock sand making machine is designed with a simple vertical structure and features hierarchical crushing, easy operation, low energy consumption and little dust. There is no sieve plate so that the problem of blocking is eliminated. The hammerhead uses a hinge structure making it convenient for replacement.

YM series soft rock sand making machine is an optimized vertical shaft impactor that integrates function of fine crushing and coarse milling. The simplicity makes this unit low energy consumption and dust emission without blockage. The swing hammer are designed in hinged geometry and made of special alloy steel for various applications.

Model	Capacity (t)	Max. feed size (mm)	Product size (mm)	Power (kw)	Rotor size (mm)	Weight (t)	Dimension (mm)
YM100	10-40	≤40	80% ≤1.5	75	Φ930X800	3.2	1345x11741x1242
YM125	20-60		80% ≤1.5	132	Φ1250X1030	5.2	2240X1800X1844
YM150	20-80		80% ≤2	160	Φ1450X1290	8.9	2480x2200x2000
YM200	40-120			200	Φ1950X1620	13.5	2790x4200x2750
YM250	60-150			280	Φ2450X1800	20.8	3015x4700x2960
