VIBRATING SCREEN

YK
VIBRATING SCREEN

Screening applications in mining, aggregates, mineral processing, recycling and various industries
1.
Simplicity, durability, stability
2.
High screening efficiency
3.
Various screening media
4.
Controllable flow rate through vibrator adjustment
5.
Low noise and energy consumption
6.
Optional full sealing system
Capacity
30-1400 t/h
Max feeding size
300 mm
Screening application
Overall Properties

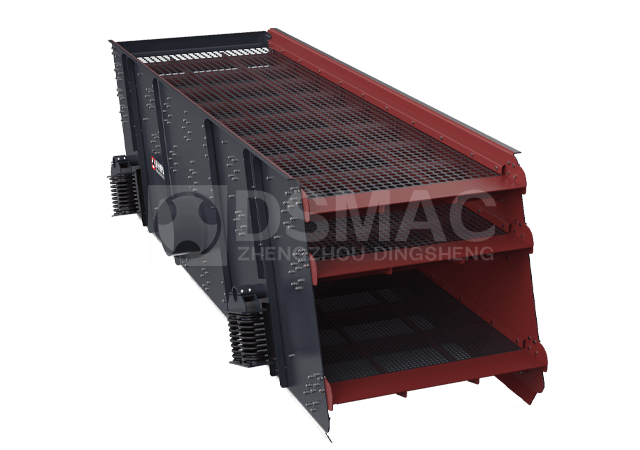

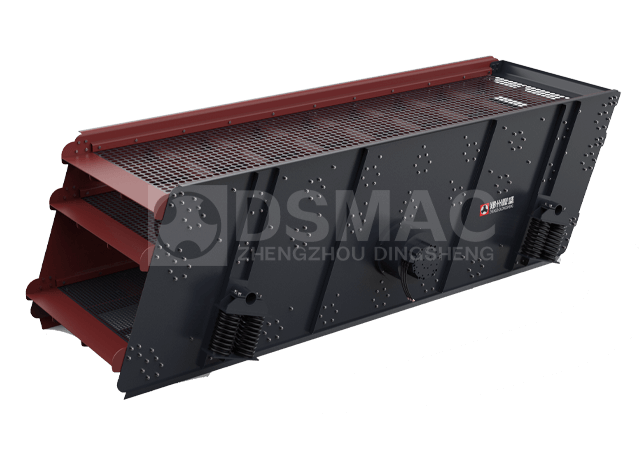

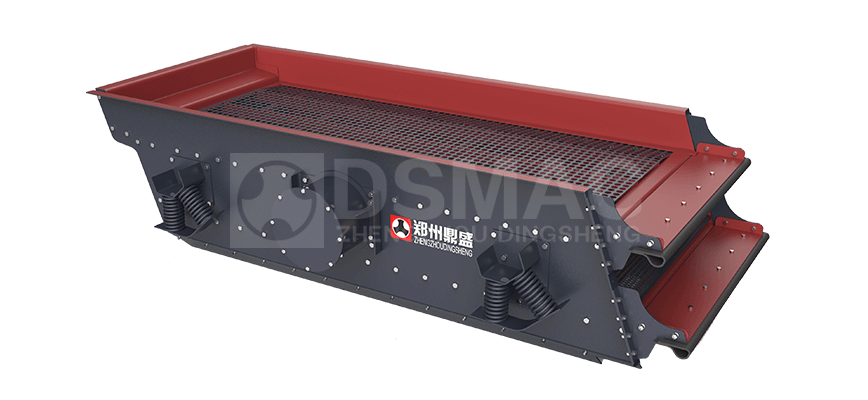

The YK series vibrating screen (inclined screen) is a new type screen machine, with a elliptical vibration. It's designed for quarry to process stone material, can also be applied in coal dressing, beneficiation, building materials, electric power and chemical industry. It is also of reliable structure, strong exciting force, high screening efficiency, low vibrating noise, long durability, convenient maintenance, safe operation, etc., and uses eccentric block to produce strong exciting force.

The YK series vibrating screen with circular motion offers one of the most practical solutions to various applications in different industries. The optimized design and robust construction satisfies our customer's requirements at all time.
YK VIBRATING SCREENYK VIBRATING SCREEN
Model Deck dimension
(mm)
Deck area
(m2)
Layers Angle
(°)
Amplitude
(mm)
Vibrating Frequency
(Hz)
Feed size
(mm)
Capacity
(t/h)
YK1245 1200X4500 5.4 1 20 6~8 16~17 ≤100 100-150
2YK1245 2 17.5 40-150
3YK1245 3 17.5 30-120
YK1545 1500X4500 6.75 1 20 6~8 16~17 ≤100 150-180
2YK1545 2 17.5 150-180
3YK1545 3 17.5 150-180
4YK1545 4 20 150-180
YK1848 1800X4800 8.64 1 20 6~8 16~17 ≤200 150-250
2YK1848 2 17.5 250-500
3YK1848 3 17.5 150-200
YK2160 2100X6000 12.6 1 15~35 6~10 13~15 ≤200 172-864
2YK2160 2 150-1400
3YK2160 3 150-1000
2YK2460 2400X6000 14.4 2 20 0~7 13~15 ≤250 200-1100
3YK2460 3 200-1100
4YK2460 4 200-1100
3YK2865 2800X6500 18.2 3 20 0~7 13~15 ≤250 300-1200
2YK3070 3000X7000 21 2 20 0~7 13~15 ≤250 350-1200
3YK3070 3 350-1200
4YK3070 4 350-1200
2YK3270 3200X7000 22.4 2 20 0~7 13~15 ≤300 400-1300
3YK3270 3 400-1300
4YK3270 4 400-1300
2YK3675 3600X7500 27 2 20 0~7 13~15 ≤300 500-1400
3YK3675 3 500-1400
4YK3675 4 500-1400

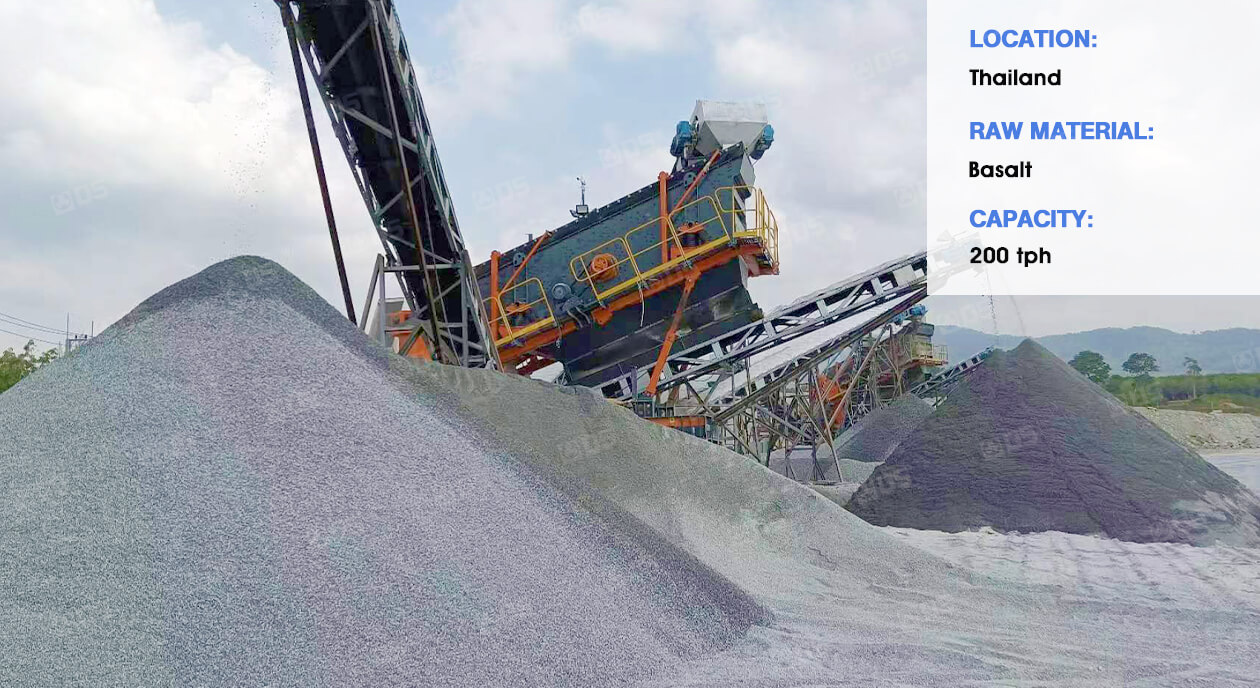

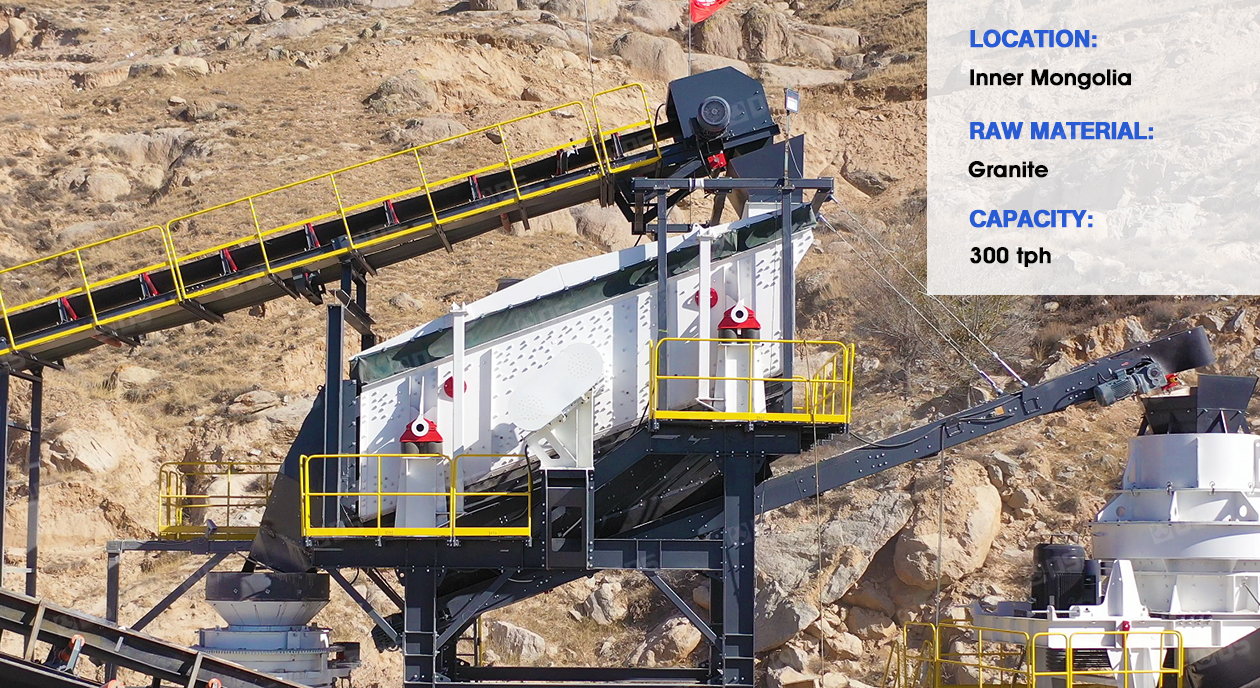

YK VIBRATING SCREEN
YK VIBRATING SCREEN
YK VIBRATING SCREEN
YK VIBRATING SCREEN
YK VIBRATING SCREEN
YK VIBRATING SCREEN
YK VIBRATING SCREEN
YK VIBRATING SCREEN
YK VIBRATING SCREEN
YK VIBRATING SCREEN
YK VIBRATING SCREEN
YK VIBRATING SCREEN
